Description
Intel® Core i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz
16 GB RAM ( 2x 8GB UDIMM DDR5-5600)
512 GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0
Integrated Intel Graphics
Windows 11 Pro, English
3-year, Onsite
Wired Keyboard & Mouse
Display
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2, DSC)
Connectivity
• Bluetooth 5.2
• Intel® Wi-Fi® 6 AX201, 802.11ax 2×2
• Integrated Ethernet 100/1000M
Max Storage Support
Up to three drives, 1x 3.5″ HDD + 1x 2.5″ HDD + 1x M.2 SSD
• 3.5″ HDD up to 2TB
• 2.5″ HDD bay is only for customer self upgrade
• M.2 SSD up to 2TB each
Front Ports
• 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

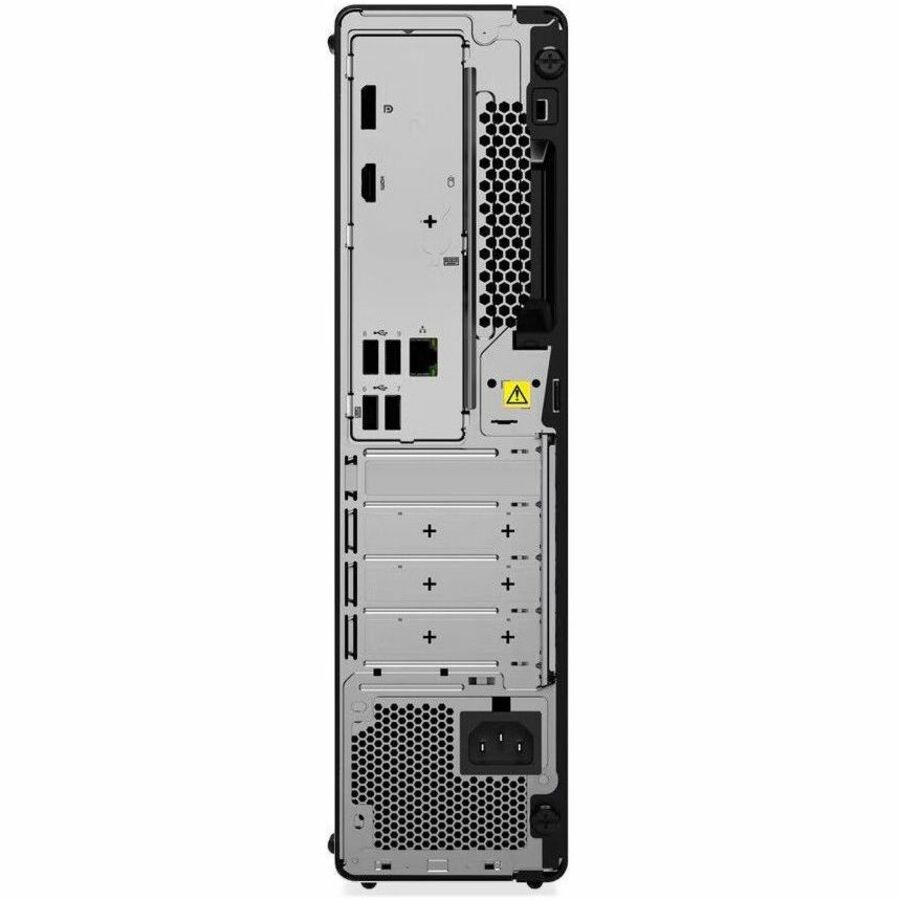

Rear Ports
• 4x USB-A (Hi-Speed USB / USB 2.0)
• 1x HDMI® 2.1 TMDS
• 1x DisplayPort™ 1.4a (HBR2, DSC)
• 1x Ethernet (RJ-45)
Expansion Slots
• One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• Two M.2 slots (one for WLAN, one for SSD)
Memory
• Pre-installed: 2x 8GB UDIMM DDR5-5600
• Two DDR5 UDIMM slots, dual-channel capable
• Up to 64GB DDR5
Dimensions (WxDxH)
92.5 x 297.7 x 339.5 mm
Weight
Around 5.3 kg
System Management: Non-vPro®
